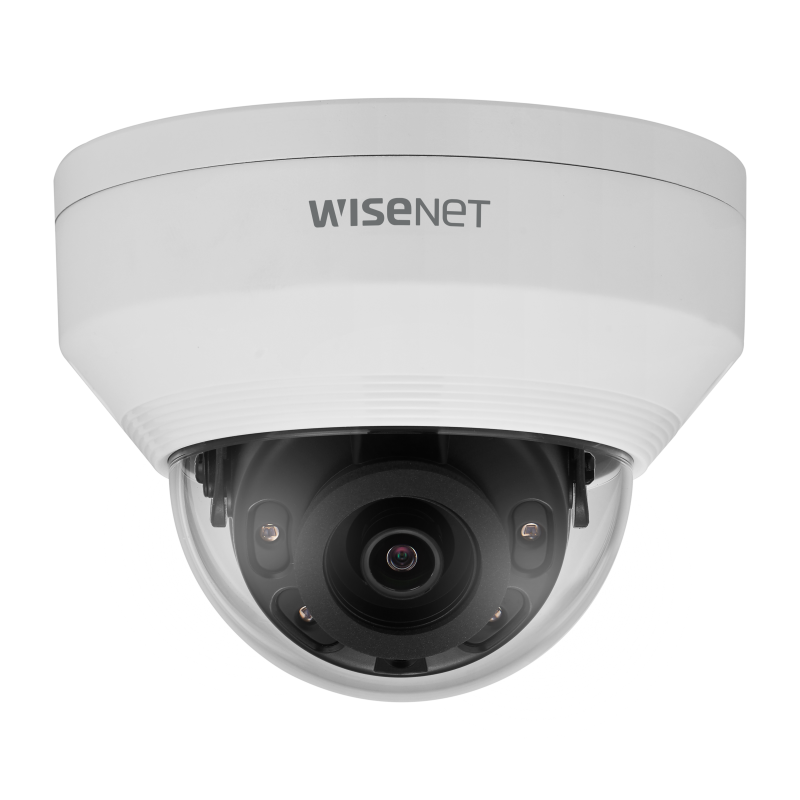

ANV-L6012R

• Video
  Imaging Device	1/2.8" CMOS
  Resolution	1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
  Max. Framerate	H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 10fps
  Min. Illumination	Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on)
  Lens
  Focal Length (Zoom Ratio)	2.8mm fixed focal
  Max. Aperture Ratio	F2.0
  Angular Field of View	H: 113.7° / V: 61.5° / D: 134.4°
  Min. Object Distance	0.5m(1.64ft)
  Focus Control	Fixed
  Pan / Tilt / Rotate
  Pan / Tilt / Rotate Range	0°~350° / 0°~67° / 0°~355°
  Operational
  Camera Title	Displayed up to 15 characters
  Day & Night	Auto(ICR)
  Backlight Compensation	BLC, WDR, SSDR
  Wide Dynamic Range	120dB
  Digital Noise Reduction	SSNR
  Motion Detection	4ea, rectangler zones
  Privacy Masking	6ea, rectangular zones
  Gain Control	Low / Middle / High
  White Balance	ATW / AWC / Manual / Indoor / Outdoor
  LDC	Support
  Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
  Video Rotation	Flip, Mirror, Hallway view(90˚/270˚)
  Analytics	Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
  Alarm Triggers	Analytics
  Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers
  IR Viewable Length	30m(98.43ft)
  Network
  Ethernet	RJ-45(10/100BASE-T)
  Video Compression	H.265/H.264 : Main/High, MJPEG
  Smart Codec	WiseStreamⅡ
  Bitrate Control	H.265/H.264: CBR or VBR MJPEG: VBR
  Streaming	Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles)
  Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
  Security	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  Application Programming Interface	ONVIF Profile S/G/T SUNAPI(HTTP API)
  General
  Webpage Language	English
  Edge Storage	Micro SD/SDHC 1slot 32GB
  Memory	512MB RAM, 256MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity	-30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C(-4°F)
  Storage Temperature / Humidity	-30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
  Certification	IP66, IK10
  Input Voltage	PoE(IEEE802.3af, Class2)
  Power Consumption	Max 6.4W, Typical 5.0W
  Mechanical
  Color / Material	White / Plastic, Aluminum
  RAL Code	RAL9003
  Product Dimensions / Weight	Ø120.3x91.7mm(Ø4.74x3.61"), 410g
  DORI (EN62676-4 standard)
  Detect (25PPM/ 8PPF)	25.1m(82.28ft)
  Observe (63PPM/ 19PPF)	10.0m(32.91ft)
  Recognize (125PPM/ 38PPF)	5.0m(16.46ft)
  Identify (250PPM/ 76PPF)	2.5m(8.23ft)
