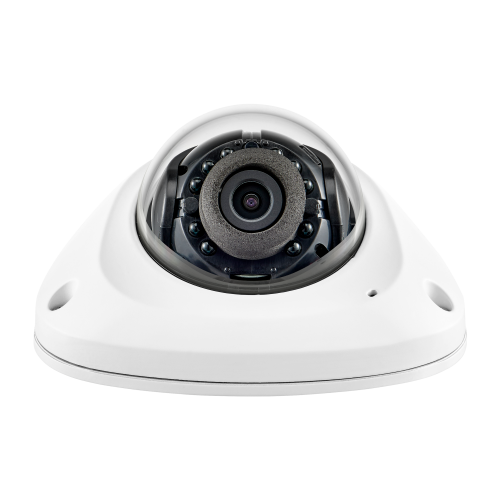

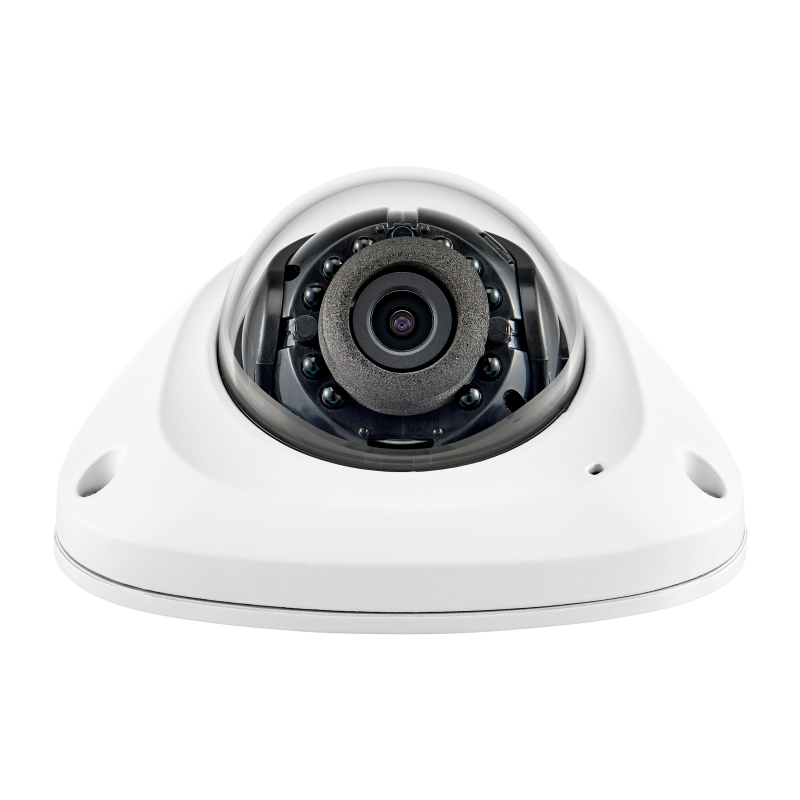

ANV-L6023R
Video
Imaging Device
1/2.8" CMOS
Resolution
1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate
H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 15fps
Min. Illumination
Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Video Out
CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio)
3.6mm fixed focal
Max. Aperture Ratio
F2.0
Angular Field of View
H: 94.8° / V: 49.3° / D: 114.3°
Min. Object Distance
0.5m(1.64ft)
Focus Control
Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
±5° / 0°~67° / ±90°
Operational
Camera Title
Displayed up to 15 characters
Day & Night
Auto(ICR)
Backlight Compensation
BLC, WDR, SSDR
Wide Dynamic Range
120dB
Digital Noise Reduction
SSNR
Motion Detection
4ea, polygonal zones
Privacy Masking
6ea, rectangular zones
Gain Control
Low / Middle / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
LDC
Support
Electronic Shutter Speed
Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation
Flip, Mirror, Hallway view(90˚/270˚)
Analytics
Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Alarm Triggers
Analytics, Network disconnect
Alarm Events
File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers
Audio In
Line-in
IR Viewable Length
15m(49.21ft)
Network
Ethernet
Metal shielded RJ-45(10/100BASE-T)
Video Compression
H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression
G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec
WiseStreamⅡ
Bitrate Control
H.265/H.264: CBR or VBR MJPEG: VBR
Streaming
Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles)
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface
ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Edge Storage
Micro SD/SDHC/SDXC 1slot 128GB
Memory
512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity
-30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
Storage Temperature / Humidity
-50°C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH
Certification
IP66, IK10, NEMA4X
Input Voltage
PoE(IEEE802.3af, Class3)
Power Consumption
Max 6.70W, Typical 5.00W
Mechanical
Color / Material
White / Aluminum
Product Dimensions / Weight
98.9x52.0x100.0mm(3.89x2.05x3.94"), 295g(0.65 lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)
35.3m(115.84ft)
Observe (63PPM/ 19PPF)
14.1m(46.33ft)
Recognize (125PPM/ 38PPF)
7.1m(23.17ft)
Identify (250PPM/ 76PPF)
3.5m(11.58ft)
