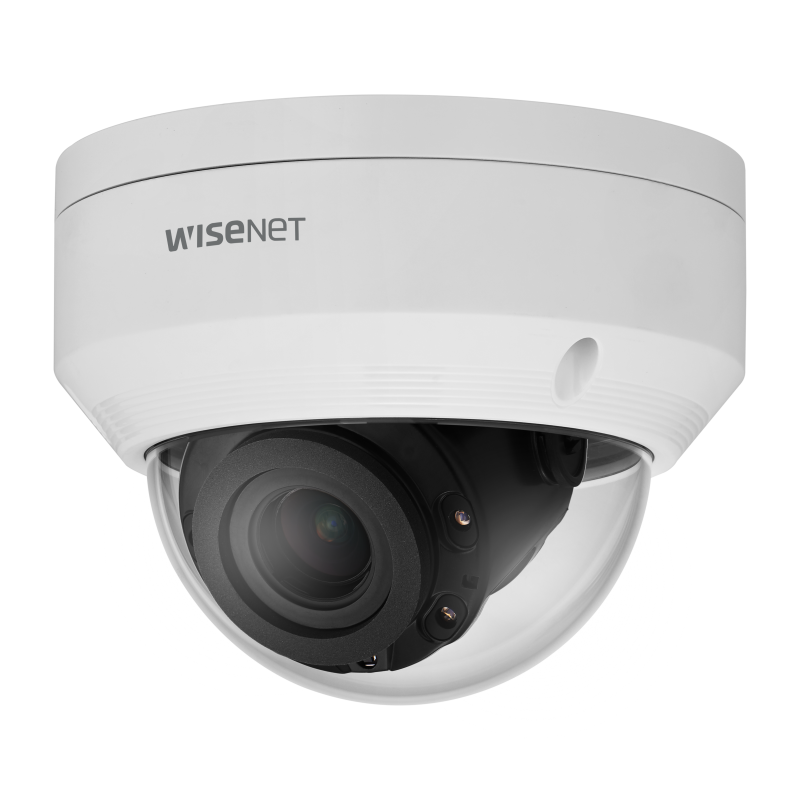

ANV-L6082R
Video
Imaging Device
1/2.8" CMOS
Resolution
1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate
H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 10fps
Min. Illumination
Color: 0.03Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio)
3.3~10.3mm(3.1x) motorized varifocal
Max. Aperture Ratio
F1.6(Wide) ~ F3.3(Tele)
Angular Field of View
H: 105.2°(Wide) ~ 30.6°(Tele) V: 54.8°(Wide) ~ 17.2°(Tele) D: 126.9°(Wide) ~ 35.1°(Tele)
Min. Object Distance
0.5m(1.64ft)
Focus Control
Simple focus
Lens Type
DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
0°~350° / 0°~67° / 0°~355°
Operational
Camera Title
Displayed up to 15 characters
Day & Night
Auto(ICR)
Backlight Compensation
BLC, WDR, SSDR
Wide Dynamic Range
120dB
Digital Noise Reduction
SSNR
Motion Detection
4ea, rectangler zones
Privacy Masking
6ea, rectangular zones
Gain Control
Low / Middle / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
LDC
Support
Electronic Shutter Speed
Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation
Flip, Mirror, Hallway view(90˚/270˚)
Analytics
Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Alarm Triggers
Analytics
Alarm Events
File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers
IR Viewable Length
30m(98.43ft)
Network
Ethernet
RJ-45(10/100BASE-T)
Video Compression
H.265/H.264 : Main/High, MJPEG
Smart Codec
WiseStreamⅡ
Bitrate Control
H.265/H.264: CBR or VBR MJPEG: VBR
Streaming
Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles)
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Security
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface
ONVIF Profile S/G/T SUNAPI(HTTP API)
General
Webpage Language
English
Edge Storage
Micro SD/SDHC 1slot 32GB
Memory
512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity
-30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C(-4°F)
Storage Temperature / Humidity
-30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
Certification
IP66, IK10
Input Voltage
PoE(IEEE802.3af, Class3)
Power Consumption
Max 7.0W, Typical 5.0W
Mechanical
Color / Material
White / Plastic, Aluminum
RAL Code
RAL9003
Product Dimensions / Weight
Ø137.8x107.1mm(Ø5.43x4.22"), 550g
Compatible Conduit hole / Gangbox
None / Single, Double, 4" Octagon
Hanging Mount (Dome)
SBP-301HMW2
Backbox
SBV-A14B
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)
Wide: 26.5m(87.07ft) / Tele: 70.3m(230.59ft)
Observe (63PPM/ 19PPF)
Wide: 10.6m(34.83ft) / Tele: 28.1m(92.24ft)<
