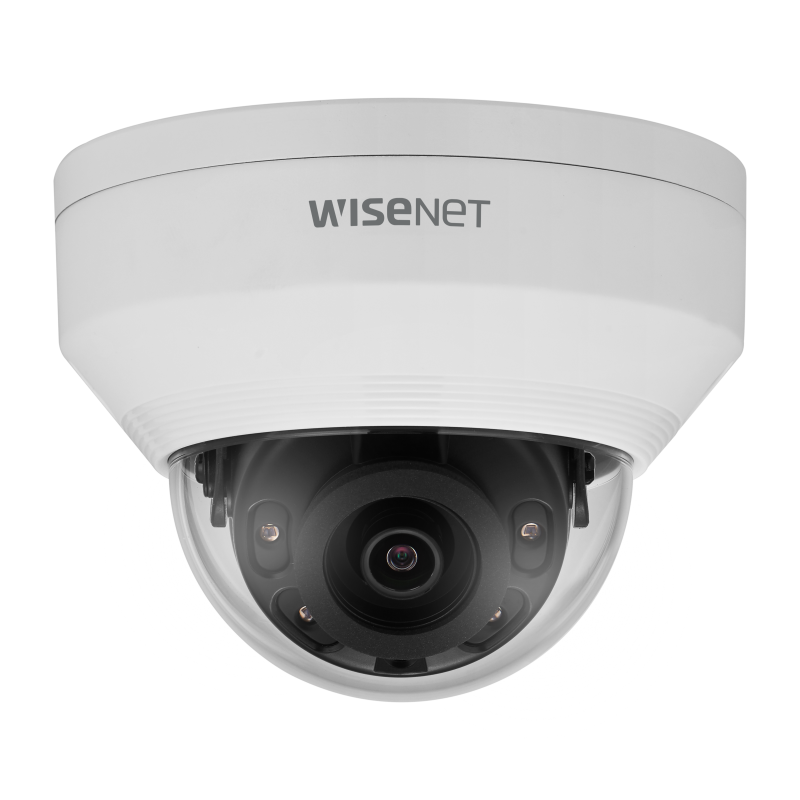

ANV-L7012R
Video
Imaging Device
1/3" CMOS
Resolution
2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate
H.265/H.264 : Max. 30fps at 4M all resolutions MJPEG : Max. 15fps
Min. Illumination
Color : 0.13Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On)
Lens
Focal Length (Zoom Ratio)
3mm fixed focal
Max. Aperture Ratio
F1.6
Angular Field of View
H: 98.3° / V: 54.2° / D: 114.6°
Min. Object Distance
1.1m(3.6ft)
Focus Control
Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
Camera Title
Displayed up to 85 characters
Day & Night
Auto(ICR)
Backlight Compensation
BLC, WDR, SSDR
Wide Dynamic Range
120dB
Digital Noise Reduction
SSNR
Motion Detection
4ea, polygonal zones
Privacy Masking
6ea, rectangular zones
Gain Control
Low / Middle / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
LDC
Support
Electronic Shutter Speed
Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Video Rotation
Flip, Mirror, Hallway view(90˚/270˚)
Analytics
Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Alarm Triggers
Analytics, Network disconnect * Alarm input(with NW I/O Box)
Alarm Events
File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover
IR Viewable Length
20m(65.62ft)
Network
Ethernet
RJ-45 (10/100BASE-T)
Video Compression
H.265/H.264 : Main/High, MJPEG
Smart Codec
Manual (5ea area), WiseStreamⅡ
Bitrate Control
H.264/H.265 : CBR or VBR MJPEG : VBR
Streaming
Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication
Application Programming Interface
ONVIF Profile S/G/T, SUNAPI (HTTP API)
General
Webpage Language
English
Edge Storage
Micro SD/SDHC/SDXC 1slot 128GB
Memory
512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity
-30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH
Storage Temperature / Humidity
-30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH
Certification
IP66, IK10
Input Voltage
PoE(IEEE802.3af, Class3)
Power Consumption
Max 7.5W, typical 5.7W
Mechanical
Color / Material
White / Plastic, Aluminum
RAL Code
RAL9003
Product Dimensions / Weight
Ø120.3x91.7mm(Ø4.74x3.61"), 410g
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)
44.3m(145.25ft)
Observe (63PPM/ 19PPF)
17.7m(58.10ft)
Recognize (125PPM/ 38PPF)
8.9m(29.05ft)
Identify (250PPM/ 76PPF)
4.4m(14.53ft)
