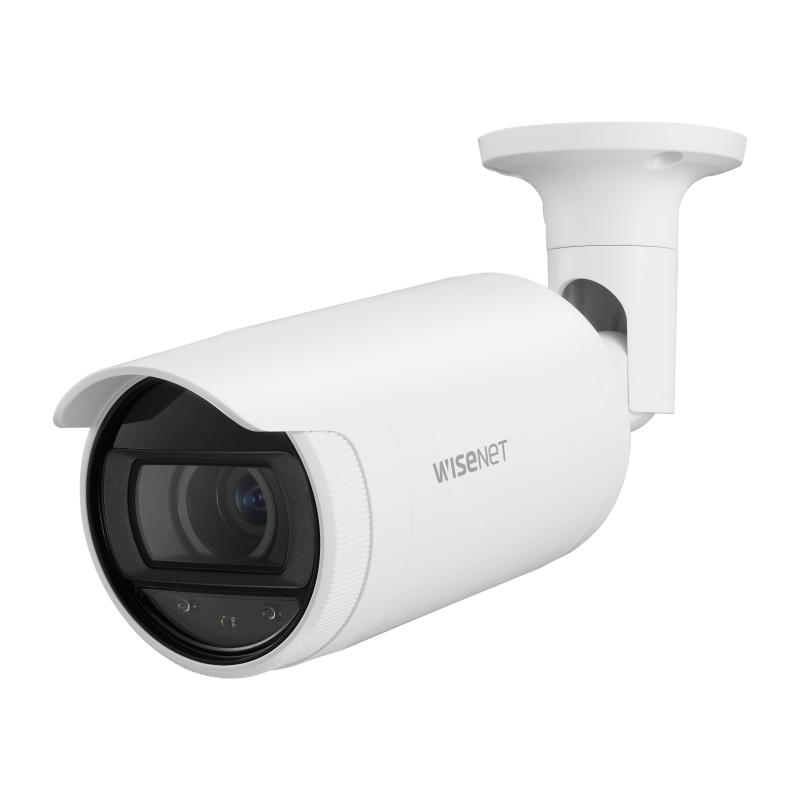

ANO-L7082R

Video

Imaging Device

1/2.8" CMOS

Resolution

2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240

Max. Framerate

H.265/H.264 : Max. 30fps at 4M all resolutions MJPEG : Max. 15fps

Min. Illumination

Color : 0.1Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On)

Lens

Focal Length (Zoom Ratio)

3.3~10.3mm(3.1x) motorized varifocal

Max. Aperture Ratio

F1.6(Wide) ~ F3.3(Tele)

Angular Field of View

H: 94.8°(Wide) ~ 28.1°(Tele) V: 50.2°(Wide) ~ 15.8°(Tele) D: 112.9°(Wide) ~ 32.2°(Tele)

Min. Object Distance

0.5m(1.64ft)

Focus Control

Simple focus

Lens Type

DC auto iris

Operational

Camera Title

Displayed up to 85 characters

Day & Night

Auto(ICR)

Backlight Compensation

BLC, WDR, SSDR

Wide Dynamic Range

120dB

Digital Noise Reduction

SSNR

Motion Detection

4ea, polygonal zones

Privacy Masking

6ea, rectangular zones

Gain Control

Low / Middle / High

White Balance

ATW / AWC / Manual / Indoor / Outdoor

LDC

Support

Electronic Shutter Speed

Minimum/Maximum/Anti flicker (1/5~1/12,000sec)

Video Rotation

Flip, Mirror, Hallway view(90˚/270˚)

Analytics

Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)

Alarm Triggers

Analytics, Network disconnect

Alarm Events

File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover

IR Viewable Length

30m(98.43ft)

Network

Ethernet

RJ-45 (10/100BASE-T)

Video Compression

H.265/H.264 : Main/High, MJPEG

Smart Codec

Manual (5ea area), WiseStreamⅡ

Bitrate Control

H.264/H.265 : CBR or VBR MJPEG : VBR

Streaming

Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP

Security

HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)

Application Programming Interface

ONVIF Profile S/G/T, SUNAPI (HTTP API)

General

Webpage Language

English

Edge Storage

Micro SD/SDHC/SDXC 1slot 128GB

Memory

512MB RAM, 256MB Flash

Environmental & Electrical

Operating Temperature / Humidity

-30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C(-4°F)

Storage Temperature / Humidity

-30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH

Certification

IP66

Input Voltage

PoE(IEEE802.3af, Class3)

Power Consumption

Max 8.0W, typical 6.0W

Mechanical

Color / Material

White / Plastic

RAL Code

RAL9003

Product Dimensions / Weight

Ø78.0x262.0mm(Ø3.07x10.31”), 390g(0.86lb)

DORI (EN62676-4 standard)

Detect (25PPM/ 8PPF)

Wide: 47.1m(154.46ft) / Tele: 204.6m(671.23ft)

Observe (63PPM/ 19PPF)

Wide: 18.8m(61.79ft) / Tele: 81.8m(92.24ft)

Recognize (125PPM/ 38PPF)

Wide: 9.4m(30.89ft) / Tele: 40.9m(134.25ft)

Identify (250PPM/ 76PPF)

Wide: 4.7m(15.45ft) / Tele: 20.5m(67.12ft)
