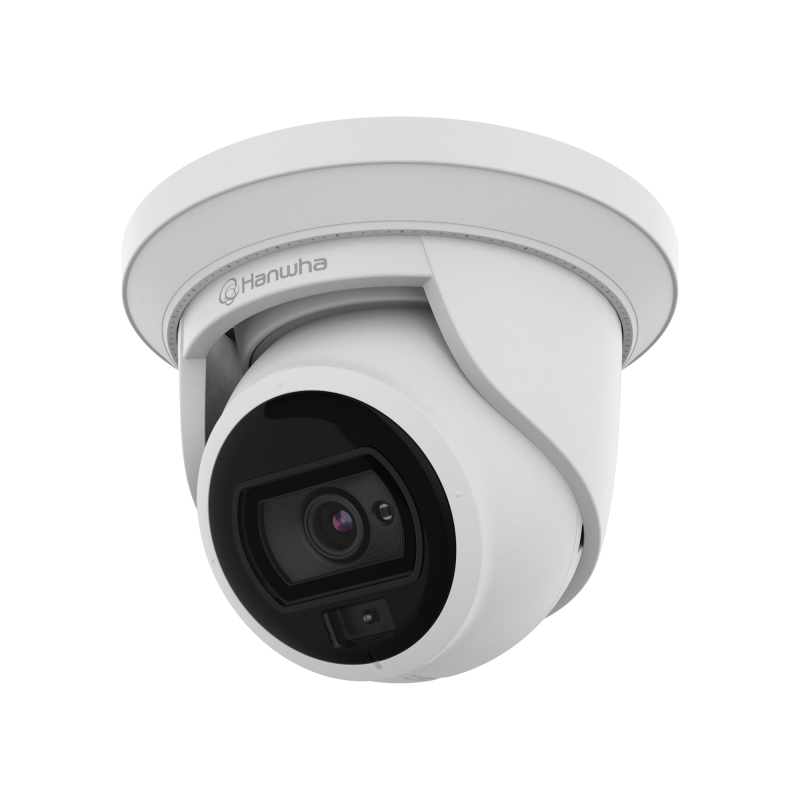

ANE-L7012L
|
Video |
|
|
Imaging Device |
1/2.8" CMOS |
|
Resolution |
2560x1440,
1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480,
640x360, 320x240 |
|
Max. Framerate |
H.265/H.264:
Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps(@4MP Max. 2fps) |
|
NETD |
None |
|
Pixel Size |
None |
|
Min.
Illumination |
Color : 0.05Lux
(F1.2, 1/30sec) |
|
Video Out |
None |
|
Video
Transmission Distance |
None |
|
Lens |
|
|
Focal Length
(Zoom Ratio) |
3.0mm fixed
focal |
|
Max. Aperture
Ratio |
F1.2 |
|
Angular Field of
View |
H: 97° / V: 53°
/ D: 113° |
|
Min. Object
Distance |
1.1m(3.6ft) |
|
Focus Control |
Fixed |
|
Lens Type |
None |
|
Mount Type |
None |
|
Optional Lens |
None |
|
Pan / Tilt /
Rotate |
|
|
Pan / Tilt /
Rotate Range |
0°~350° / 0°~75°
/ 0°~360° |
|
Pan Range |
None |
|
Pan Speed |
None |
|
Tilt Range |
None |
|
Tilt Speed |
None |
|
Rotate Range |
None |
|
Sequence |
None |
|
Preset Accuracy |
None |
|
Operational |
|
|
Camera Title |
Displayed up to
85 characters |
|
Direction
Indicator |
None |
|
Day & Night |
Auto(Electrical) |
|
Backlight
Compensation |
BLC, WDR, SSDR |
|
Wide Dynamic
Range |
120dB |
|
Digital Noise
Reduction |
SSNR |
|
Digital Image
Stabilization |
None |
|
Defog |
None |
|
Motion Detection |
4ea, polygonal
zones |
|
Privacy Masking |
6ea, rectangular
zones |
|
Gain Control |
Low / Middle /
High |
|
White Balance |
ATW / AWC /
Manual / Indoor / Outdoor |
|
LDC |
Support |
|
Electronic
Shutter Speed |
Minimum/Maximum/Anti
flicker (1/5~1/12,000sec) |
|
Digital PTZ |
None |
|
Video Rotation |
Flip, Mirror,
Hallway view(90°/270°) |
|
Analytics |
Motion
detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit),
Virtual line(Crossing/Direction) |
|
Business
Intelligence |
None |
|
Serial Interface |
None |
|
Alarm I/O |
None |
|
Alarm Triggers |
Analytics,
Network disconnect |
|
Alarm Events |
When alarm
trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail -
Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover(PTZ
preset) - Light alarm |
|
Audio Streaming |
None |
|
Audio In |
None |
|
Audio Out |
None |
|
Light Type |
Warm color
(3000K) |
|
Light Viewable
Length |
20m(65.61ft) |
|
IR Viewable
Length |
None |
|
IR Illuminator (Optional)< |
