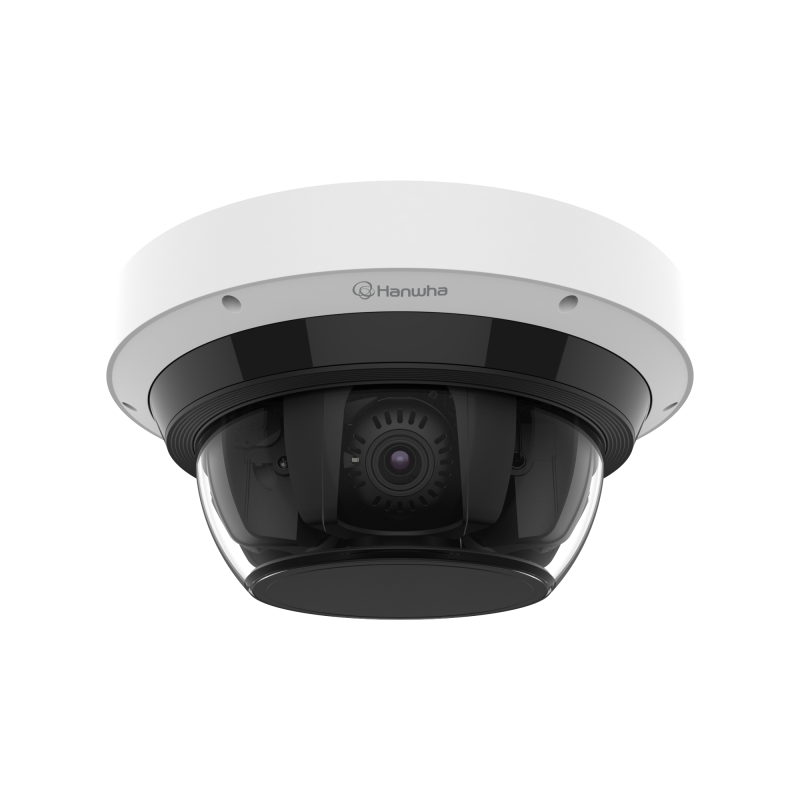

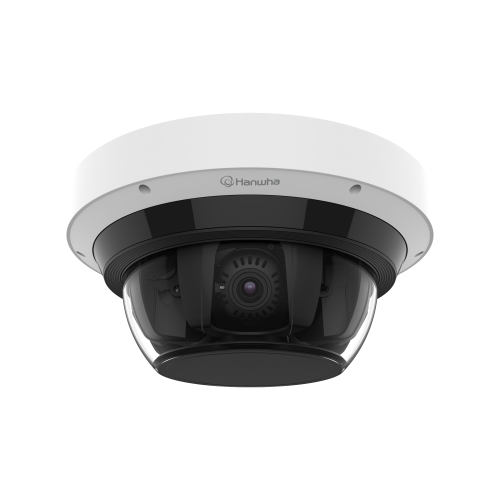

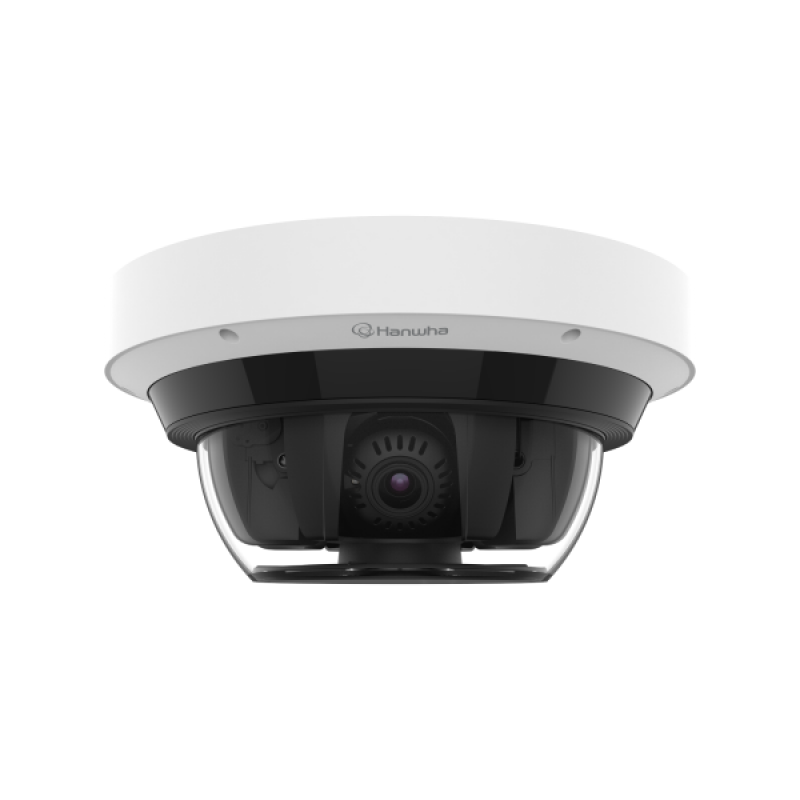

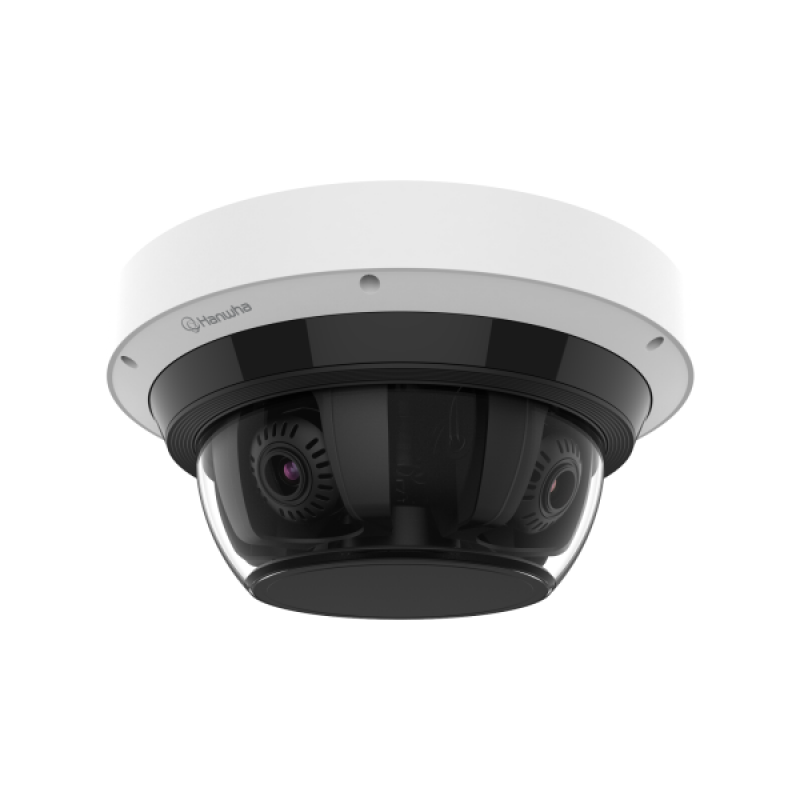

PNM-C16083RQZ

Video

Imaging Device

1/2.8" CMOS x 4CH

Resolution

2592x1520, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360

Max. Framerate

H.265/H.264: Max. 30fps
MJPEG: Max. 30fps(@4MP Max. 5fps)

Min. Illumination

Color: 0.1Lux(F1.6, 1/30sec, 30IRE)
BW: 0.01Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)

Lens

Focal Length (Zoom Ratio)

3.2~10.2mm(3.2x) motorized varifocal

Max. Aperture Ratio

F1.6(Wide)~F3.1(Tele)

Angular Field of View

H: 93°(Wide)~29°(Tele)
V: 53°(Wide)~17°(Tele)
D: 111°(Wide)~34°(Tele)

Min. Object Distance

1.2m(3.93ft)

Focus Control

Simple focus

Lens Type

P-Iris

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range

Remote adjustment(Max. 200cycles)
0°~360° / 30°~90° / 0°~90°

Operational

Camera Title

Displayed up to 85 characters

Day & Night

Auto(ICR)

Backlight Compensation

BLC, WDR, SSDR

Wide Dynamic Range

120dB

Digital Noise Reduction

SSNRⅤ, WiseNRⅡ(Based on AI engine)

Defog

Support

Motion Detection

8ea, 8point Polygonal zones

Privacy Masking

6ea, 4point quadrangle zones
- Color: Gray/Black/White

Gain Control

Low / Middle / High

White Balance

ATW / AWC / Manual / Indoor / Outdoor

LDC

Support

Electronic Shutter Speed

Minimum / Maximum / prefer shutter / Anti flicker(1/5~1/12,000sec)
Prefer shutter control based on AI engine

Video Rotation

Flip, Mirror, Hallway view(90°/270°) - each CH separately

Analytics

Classified object type: Person/Face/Vehicle/License plate
Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle, Color), Person (clothing color)
Support BestShot
Analytics events based on AI engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics events
- Defocus detection, Motion detection, Tampering, Virtual area (Appear/Disappear)
* Audio detection, Sound classification(with NW I/O box SPM-4210)

Alarm I/O

2 configurable I/O ports
* Support Alarm via optional SPM-4210 I/O box

Alarm Triggers

Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Tampering

Alarm Events

When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- MQTT: publication

Audio In

* Support Audio via optional SPM-4210 I/O box

Audio Out

* Support Audio via optional SPM-4210 I/O box

Light Type

IR LED

IR Viewable Length

WiseIR: PoE++ 20m(65.62ft) / PoE+ 15m(49.21ft)

IR Wavelength

850nm

Network

Ethernet

Metal shielded RJ-45(10/100/1000BASE-T)

Video Compression

H.265/H.264: Main/High, MJPEG

Smart Codec

Manual(5ea area), WiseStreamⅢ

Bitrate Control

H.264/H.265: CBR or VBR
MJPEG: VBR

Streaming

Unicast(10 users) / Multicast
Multiple streaming(Up to 3 profiles per CH)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT

Application Programming Interface

ONVIF Profile S/T/G/M
SUNAPI(HTTP API)
Hanwha vision open platform

Security

OS / Firmware Protect

Encrypted Firmware, Secure boot, Signed Firmware

User authentication

Digest Authenticaton

Network authentication

IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)

Secure Communication

HTTPS, WSS(WebSocket Secure)

Access Control

IP-based access control

Data Protect

Encryption Credentials, Encrypt compress for live recording file

Audit

Access / System / Event Log management

Device ID

Device certificate(Hanwha Vision Root CA)

Secure Storage

TPM, SDcard partition encrypt

Security Certificate

TPM with FIPS 140-2 level 2

General

Webpage Language

English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian

Edge Storage

Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)

Memory

8GB RAM, 8GB eMMC
