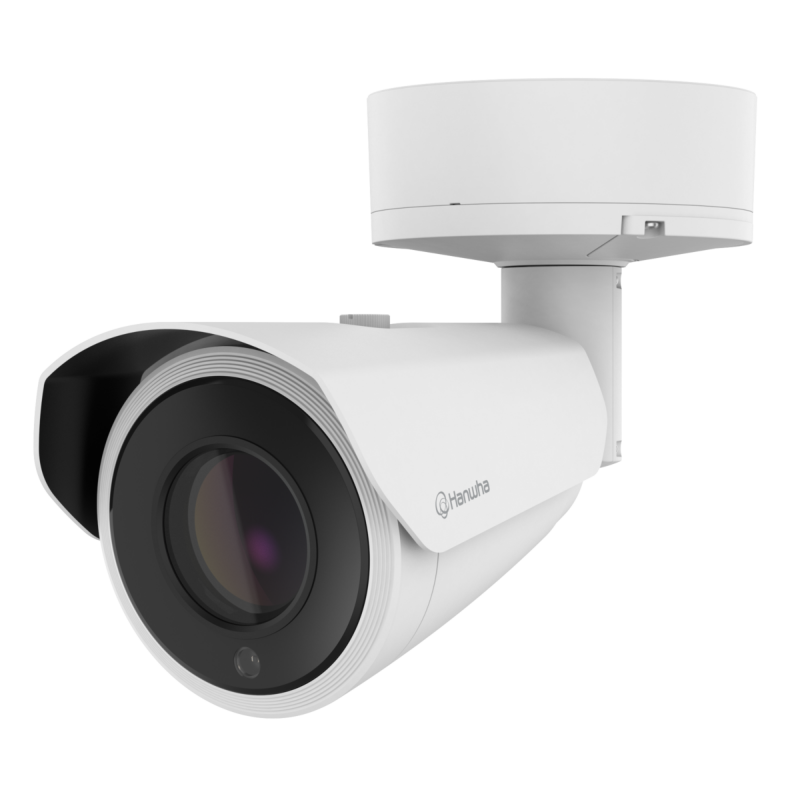

PNO-A9311R

Video

Imaging Device

1/1.8" CMOS

Resolution

3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360

Max. Framerate

H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps

NETD

None

Pixel Size

None

Min. Illumination

Color: 0.075Lux(F1.36, 1/30sec, 30IRE) BW: 0.0075Lux(F1.36, 1/30sec, 30IRE), 0Lux(IR LED on)

Video Out

CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Video Transmission Distance

None

Lens

Focal Length (Zoom Ratio)

6.91~214.7mm (31x) motorized varifocal

Max. Aperture Ratio

F1.36(Wide)~F4.6(Tele)

Angular Field of View

H: 60.92°(Wide)~2.2°(Tele) V:35.26°(Wide)~1.24°(Tele) D:69.18°(Wide)~2.52°(Tele)

Min. Object Distance

3m(9.84ft)

Focus Control

Simple focus

Lens Type

P iris

Mount Type

None

Optional Lens

None

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range

None

Pan Range

None

Pan Speed

None

Tilt Range

None

Tilt Speed

None

Rotate Range

None

Sequence

None

Preset Accuracy

None

Operational

Camera Title

Displayed up to 85 characters

Direction Indicator

None

Day & Night

Auto(ICR)

Backlight Compensation

BLC, WDR, SSDR

Wide Dynamic Range

120dB

Digital Noise Reduction

WiseNR Ⅱ(using AI engine) SSNRⅤ

Digital Image Stabilization

Support(built-in gyro sensor)

Defog

None

Motion Detection

8ea, polygonal zones

Privacy Masking

3ea, rectangle zones - Color: Gray/Black/White

Gain Control

Low / Middle / High

White Balance

ATW / AWC / Manual / Indoor / Outdoor

LDC

None

Electronic Shutter Speed

Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine

Digital PTZ

None

Video Rotation

Flip, Mirror, Hallway view(90˚/270˚)

Analytics

Classified object type: Person/Face/Vehicle/License plate Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) Support WiseDetector for Adding custom objects *Some of the video analytics only works with people and vehicle detection

Business Intelligence

People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine

Serial Interface

None

Alarm I/O

2 configurable I/O ports, DC 12V output(Max. 50mA)

Alarm Triggers

Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription

Alarm Events

When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication

Audio Streaming

None

Audio In

Selectable(mic in/line in)

Audio Out

Line out

Light Type

IR LED (850nm)

Light Viewable Length

None

IR Viewable Length

WiseIR 70m(229.66ft)

IR Illuminator (Optional)

None

IR Radiation angle

None

IR LED

None

IR Wavelength

None

IR Operation

None

Water Removal

None

Auto Tracking

None

Coaxial Protocol

None

Color Palettes

None

Radiometry

Temperature Detect Range

None

Temperature Accuracy

None

Temperature Detection

None

Additional

None
