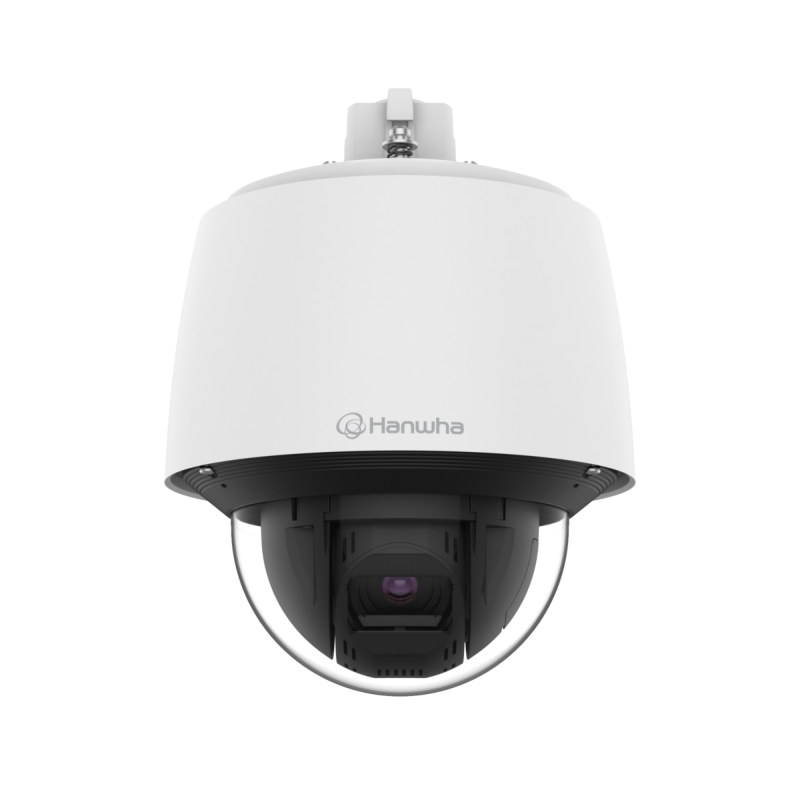

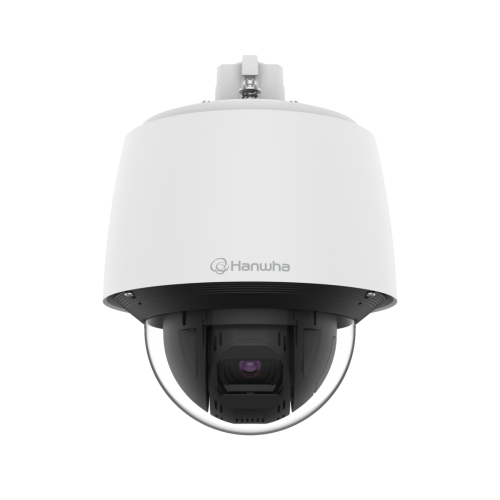

QNP-6250H

Video

Imaging Device

1/2.8" CMOS

Resolution

1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240

Max. Framerate

H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)

NETD

None

Pixel Size

None

Min. Illumination

Color: 0.05Lux(F1.6, 1/30sec, 30IRE) BW: 0.005Lux(F1.6, 1/30sec, 30IRE)

Video Out

None

Video Transmission Distance

None

Lens

Focal Length (Zoom Ratio)

4.44~111mm(25x) zoom (digital 32x, total 800x zoom)

Max. Aperture Ratio

F1.6(Wide)~F3.9(Tele)

Angular Field of View

H: 64.66°(Wide)~2.99°(Tele) V: 38.08°(Wide)~1.68°(Tele)

Min. Object Distance

Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft)

Focus Control

Oneshot AF, Focus save

Lens Type

DC auto iris

Mount Type

None

Optional Lens

None

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range

None

Pan Range

360° Endless

Pan Speed

Preset: 700°/sec, Manual: 0.024°/sec~200°/sec

Tilt Range

105°(0°~105°)

Tilt Speed

Preset: 300°/sec, Manual: 0.024°/sec~200°/sec

Rotate Range

None

Sequence

Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule

Preset Accuracy

±0.2°

Operational

Camera Title

Displayed up to 85 characters

Direction Indicator

Support

Day & Night

Auto(ICR)

Backlight Compensation

BLC, HLC, WDR, SSDR

Wide Dynamic Range

120dB

Digital Noise Reduction

SSNRⅤ

Digital Image Stabilization

Support(built-in gyro sensor)

Defog

Support

Motion Detection

8ea, 8point polygonal zones

Privacy Masking

32ea, 4point quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Solid/Mosaic

Gain Control

Low / Middle / High

White Balance

ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium

LDC

None

Electronic Shutter Speed

Minimum / Maximum / Anti flicker (2~1/12,000sec)

Digital PTZ

None

Video Rotation

Flip, Mirror

Analytics

Analytics events - Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line * Audio detection(Via optional I/O box SPM-4210)

Business Intelligence

None

Serial Interface

None

Alarm I/O

None

Alarm Triggers

Analytics, Network disconnect * Alarm input((Via optional I/O box SPM-4210)

Alarm Events

When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) * Alarm output / Audio clip playback(Via optional I/O box SPM-4210)

Audio Streaming

None

Audio In

None

Audio Out

None

Light Type

None

Light Viewable Length

None

IR Viewable Length

None

IR Illuminator (Optional)

None

IR Radiation angle

None

IR LED

None

IR Wavelength

None

IR Operation

None

Water Removal

None

Auto Tracking

Support

Coaxial Protocol

None

Color Palettes

None

Radiometry

Temperature Detect Range

None

Temperature Accuracy

None

Temperature Detection

None

Additional

None

Network

Ethernet

Metal shielded RJ-45(10/100BASE-T)

Video Compression

H.265/H.264: Main/High, MJPEG

Audio Compression

None

Smart Codec

Manual(5ea area), WiseStreamⅡ

Video Quality Adjustment

H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control

Bitrate Control

H.264/H.265: CBR or VBR MJPEG: VBR

Streaming

Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205

SIP support (VoIP, Peer-to-peer, SIP/PBX integration)

None

Security

None

Application Programming Interface

ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

Security

OS / Firmware Protect

Firmware encryption

User authentication

Digest Authentication, Privent brute-force attack

Network authentication

802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)

Secure Communication

HTTPS, SRTP, WSS(Websocket secure)

Access Control

IP address filtering

Data Protect

Authentication information encryption, ZIP compression encryption

Audit

User Access/System/Event log

Device ID

Device Certificate(Hanwha Techwin Root CA, pre-installed)

Secure Storage

None

Security Certificate

None

General

Webpage Language

English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek

Web Viewer

None

Edge Storage

Micro SD/SDHC/SDXC 1slot Max. 256GB

Memory

1GB RAM, 256MB Flash
