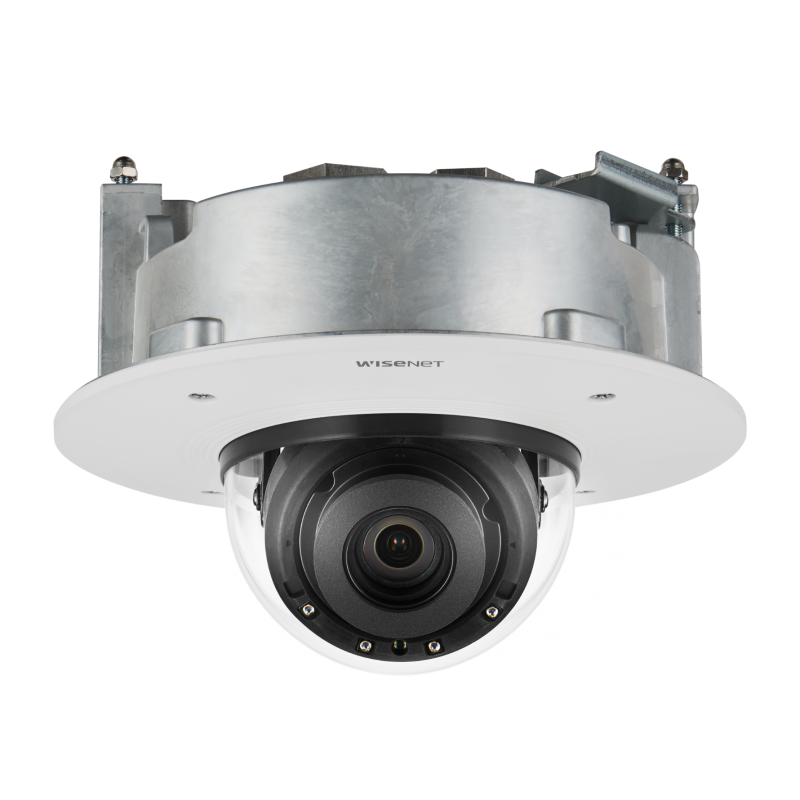

XND-8082RF
Video Imaging Device 1/2.8”CMOS Resolution 3328x1872,3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768,
800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)Min. Illumination Color: 0.05Lux(F1.2, 1/30sec)
B/W: 0Lux(IR LED On)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationLens Focal Length (Zoom Ratio) 2.8~8.4mm(3x) motorized varifocal Max. Aperture Ratio F1.2(Wide)~F2.8(Tele) Angular Field of View H: 114°(Wide)~40.2°(Tele) / V: 62.0°(Wide)~22.5°(Tele) / D: 133.0°(Wide)~46.3°(Tele) Min. Object Distance 0.7m (2.23ft) Focus Control Simple focus Lens Type DC Auto Iris, P iris Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0˚~360˚ / -45˚~85˚ / 0˚~355˚ Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range extremeWDR(120dB) Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support(built-in gyro sensor) Defog Support Motion Detection 8ea, 8point Polygonal zones Privacy Masking 32ea, polygonal zones
- Color : Gray, Green, Red, Blue, Black, White
- MosaicGain Control Support White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90˚/270˚) Analytics Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear,
Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification,
Shock detection, Face/upper body detectionBusiness Intelligence People counting, Queue management, Heatmap Alarm I/O 2 configurable I/O ports Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Handover
Audio playbackAudio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms IR Viewable Length 40m(131.23ft) Network Ethernet RJ-45(10/100/1000BASE-T) Video Compression H.265/H.264: Main/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP,
ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech,
Polish, Turkish, Dutch, Hungarian, GreekWeb Viewer Supported OS: Windows 8.1 or later, Mac OS X 10.13 or later
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 2slot 512GB(256Gx2) Memory 4GB RAM, 512MB Flash Environmental & Electrical Operating Temperature / Humidity -25°C ~ +60°C (-13°F ~ +140°F) / Less than 95% RH (non condensing) Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP52, Plenum rate, IK10 Input Voltage PoE(IEEE802.3af), 12VDC Power Consumption PoE : Max 12.95W, typical 10.7W
12VDC : Max 11.5W, typical 9.0WMechanical Color / Material White / Aluminum RAL Code RAL9003 Product dimensions / weight Ø205x163mm(8.07x6.42"), 1.95kg(4.29 lb) DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 49.9m(163.71ft) / Tele: 209.9m(688.65ft) Observe (63PPM/ 19PPF) Wide: 19.9m(65.29ft) / Tele: 83.9m(275.26ft) Recognize (125PPM/ 38PPF) Wide: 10.0m(32.80ft) / Tele: 42.0m(137.80ft) Identify (250PPM/ 76PPF) Wide: 5.0m(16.40ft) / Tele: 21.0m(68.90ft) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin.
| Τεχνικά Χαρακτηριστικά | |
| Ανάλυση αισθητήρα | 3328x1872,3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Τύπος Αισθητήρα | 1/2.8”CMOS |
| Ελαχιστη Φωτεινότητα | Color: 0.05Lux(F1.2, 1/30sec) B/W: 0Lux(IR LED On) |
| Εστιακό βάθος | 2.8~8.4mm(3x) motorized varifocal |
| WDR | extremeWDR(120dB) |
| Analytics | Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection |
| Συμπίεση Βίντεο | H.265/H.264: Main/High, MJPEG |
| Μνήμη | 4GB RAM, 512MB Flash |
| Πιστοποίηση | IP52, Plenum rate, IK10 |
| Χρώματισμός / Υλικό | White / Aluminum |
