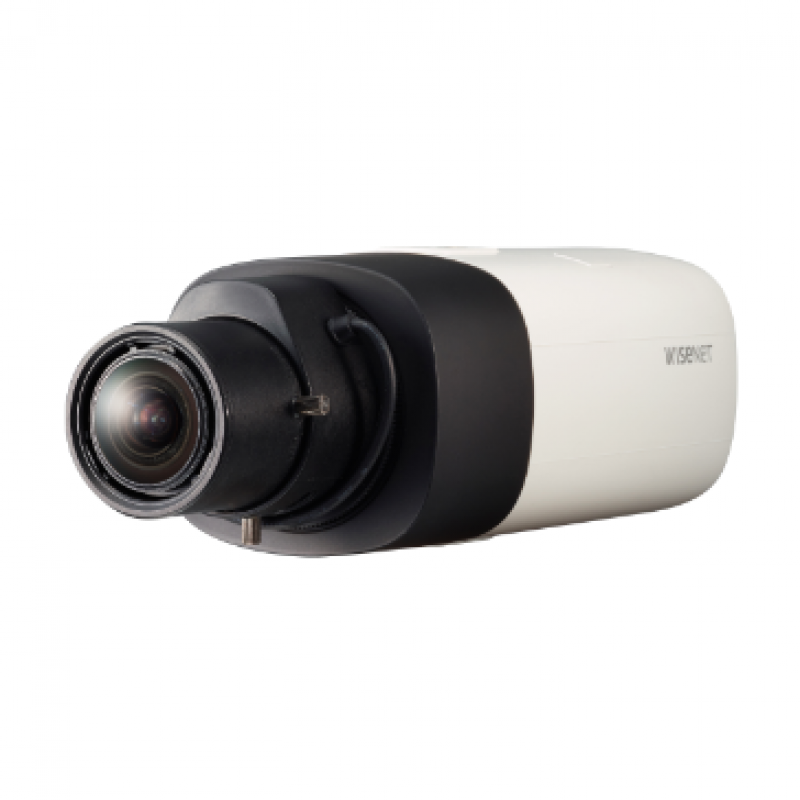

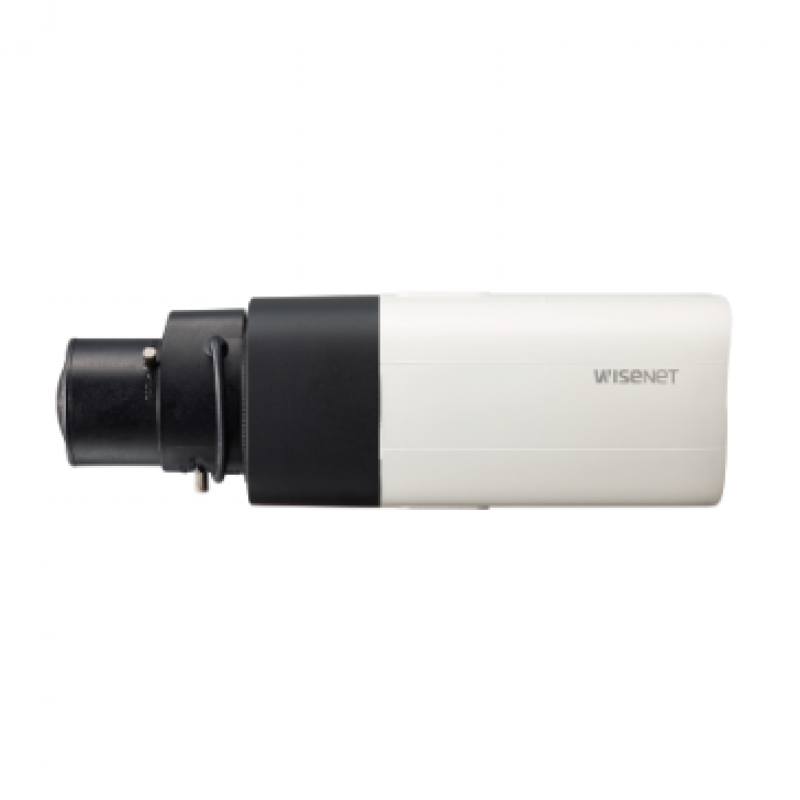

XNB-6005

XNB-6005
XNB-6005 XNB-6005
  • Video
    Imaging Device1/2" 2MP CMOS
    Effective Pixels1945(H)x1097(V)
    Min. Illuminationcolor: 0.006Lux(F1.2, 1/30sec)
    BW: 0.0006Lux(F1.2 1/30sec)
    Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focus ControlSimple Remote Control focus via network, manual
    Lens TypeDC auto iris, P iris
    Mount TypeC mount, CS mount
    Operational
    Camera TitleDisplayed up to 85 characters
    Day & NightAuto(ICR)
    Backlight CompensationBLC, HLC, WDR, SSDR
    Wide Dynamic Range150dB
    Digital Noise ReductionSSNRⅤ
    Digital Image StabilizationSupport(built-in gyro sensor)
    DefogSupport
    Motion Detection8ea, 8point polygonal zones
    Privacy Masking32ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain ControlLow / Middle / High
    White BalanceATW / AWC / Manual / Indoor / Outdoor
    LDCSupport
    Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
    Video RotationFlip, Mirror, Hallway view(90˚/270˚)
    AnalyticsDefocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
    Serial InterfaceRS-485/422(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
    Alarm I/OInput 1ea / Output 1ea
    Alarm TriggersAnalytics, Network disconnect, Alarm input
    Alarm EventsFile upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    DPTZ preset
    Audio InSelectable(mic in/line in/built-in mic)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio OutLine out, Max.output level: 1Vrms
    Network
    EthernetRJ-45(10/100BASE-T)
    Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
    Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. FramerateH.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Smart CodecManual(5ea area), WiseStreamⅡ
    Bitrate ControlH.264/H.265: CBR or VBR
    MJPEG: VBR
    StreamingUnicast(20 users) / Multicast
    Multiple streaming (Up to 10 profiles)
    Audio CompressionG.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP(Unicast)
    SecurityHTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Edge StorageMicro SD/SDHC/SDXC 2slot 512GB
    Application Programming InterfaceONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
    Recommended Browser: Google Chrome
    Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
    Memory1024MB RAM, 256MB Flash
    Environmental
    Operating Temperature / Humidity-10°C~+55°C (-14°F~+131°F) / Less than 90% RH
    Storage Temperature / Humidity-30°C~+60°C (-22°F~+140°F) / Less than 90% RH
    Electrical
    Input VoltagePoE(IEEE802.3af, Class3), 24VAC, 12VDC
    Power ConsumptionPoE: Max. 8.5W
    12VDC: Max. 8W
    24VAC: Max. 9W
    Mechanical
    Color / MaterialBlack, Ivory / Plastic
    Product dimensions / weight73.1(W)x66.6(H)x147.8(D)mm(2.88x2.62x5.82"), 420g(0.93 lb)
  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin.
Τεχνικά Χαρακτηριστικά
Ανάλυση αισθητήρα multi sensor effective pixels 1945(H)x1097(V)
Τύπος Αισθητήρα 1/2" 2MP CMOS
Ελαχιστη Φωτεινότητα color: 0.006Lux(F1.2, 1/30sec) BW: 0.0006Lux(F1.2 1/30sec)
Εστιακό βάθος Simple Remote Control focus via network, manual
WDR 150dB
Απόσταση Ορατότητας IR N/A
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
ONVIF ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Συμπίεση Βίντεο H.265/H.264: Main/Baseline/High, MJPEG
Μνήμη 1024MB RAM, 256MB Flash
Πιστοποίηση N/A
Ήχος Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm Line out, Max.output level: 1Vrms
  • Κατασκευαστής: HANWHA WISENET
  • Κωδικός Προϊόντος: XNB-6005
  • Διαθεσιμότητα: Διαθέσιμο
Επιθυμητό Σύγκριση

Ετικέτες: XNB-6005 hanwha wisenet extra lux
