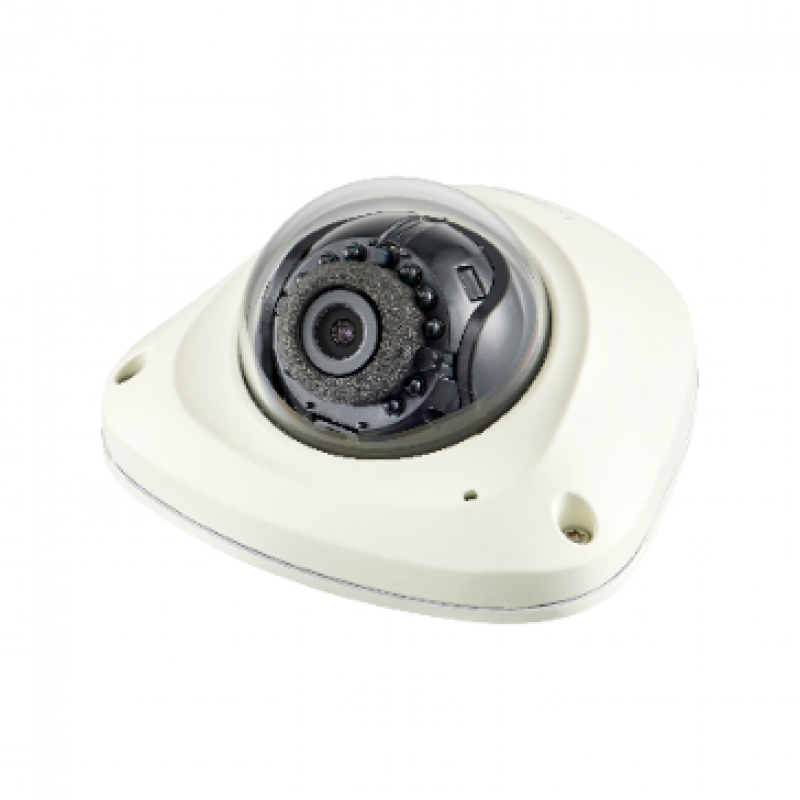

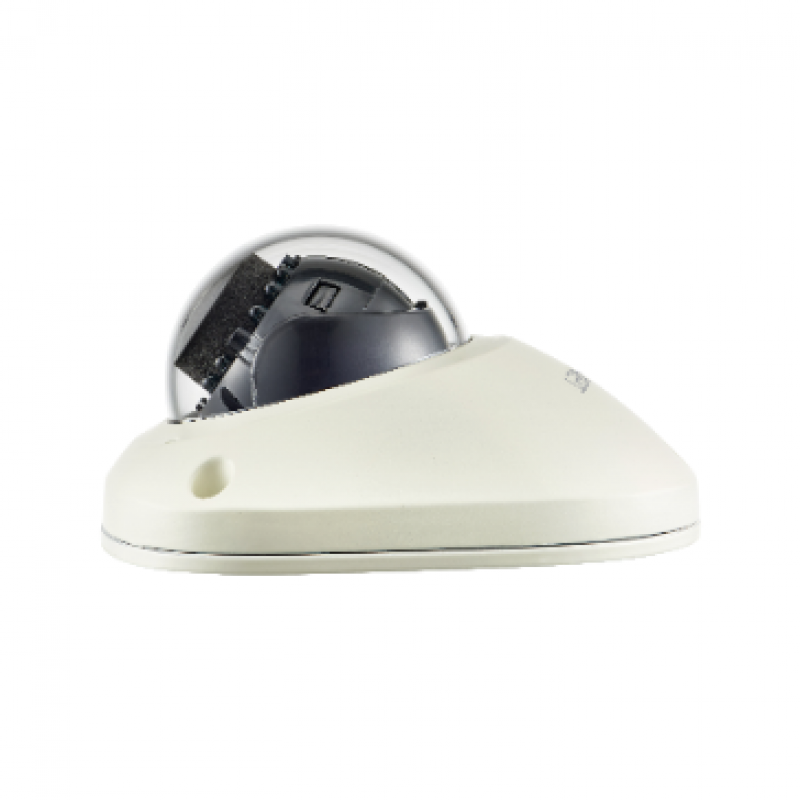

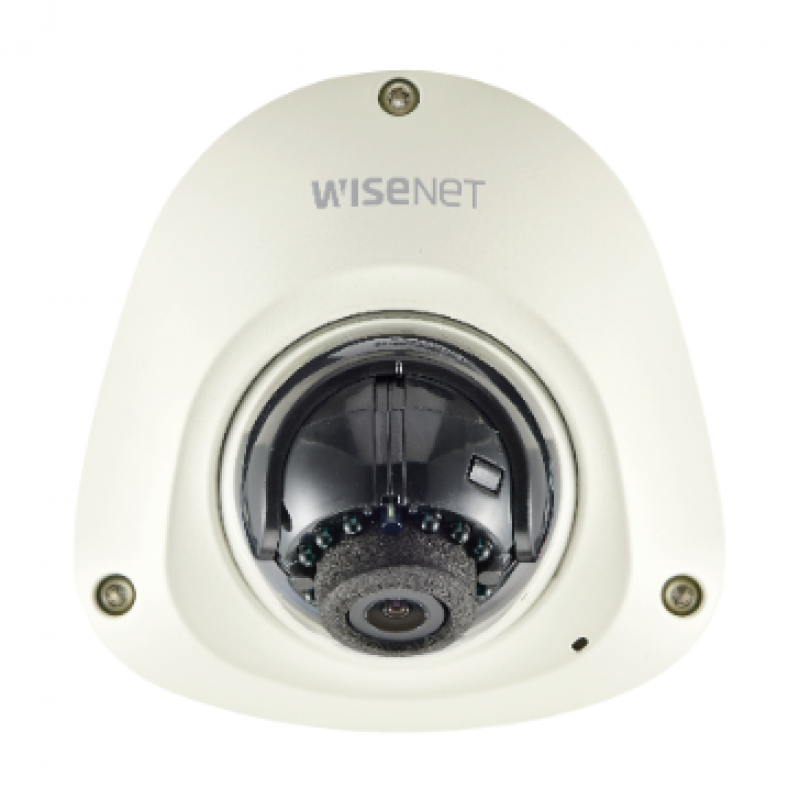

XNV-6022R

Περιγραφή
Χαρακτηριστικά

Model A : XNV-6022R Model B : XNV-6022RM ( M= Mobile(M-12 connector) Video
Imaging Device		1/2.8" 2MP CMOS
Effective Pixels		1945(H)x1097(V)
Min. Illumination		Color: 0.04Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Video Out		USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)		3.6mm fixed focal
Max. Aperture Ratio		F2.0
Angular Field of View		H: 94.8˚ / V: 49.3˚ / D: 114.3˚
Focus Control		Manual
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range		±5° / 0°~67° / ±90°
Operational
IR Viewable Length		15m(49.21ft)
Camera Title		Displayed up to 85 characters
Day & Night		Auto(ICR)
Backlight Compensation		BLC, HLC, WDR
Wide Dynamic Range		150dB
Digital Noise Reduction		SSNRV
Digital Image Stabilization		Support(built-in gyro sensor)
Defog		Support(built-in optical filter)
Motion Detection		8ea, 8point polygonal zones
Privacy Masking		32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain Control		Low / Middle / High
White Balance		ATW / AWC / Manual / Indoor / Outdoor
LDC		Support
Electronic Shutter Speed		Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation		Flip, Mirror, Hallway view(90˚/270˚)
Analytics		Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification (w/ external MIC)
Alarm Triggers		Analytics, Network disconnect
Alarm Events		File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers
Audio In		Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out		Line out, Max.output level: 1Vrms
Network
Ethernet		RJ-45(10/100BASE-T)
Video Compression		H.265/H.264: Main/Baseline/High, MJPEG
Resolution		1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate		H.265/H.264: Max.60fps/50fps(60Hz/50Hz) MJPEG: Max.30fps/25fps(60Hz/50Hz)
Smart Codec		Manual(5ea area), WiseStreamⅡ
Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
Streaming		Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Audio Compression		G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage		Micro SD/SDHC/SDXC 1slot 256GB
Application Programming Interface		ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform
Web Viewer		Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser : MS Explore11, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory		1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity		-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity		-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification		IP66, IK10, NEMA4X EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007
Electrical
Input Voltage		PoE(IEEE802.3af, Class3)
Power Consumption		PoE: Max 6.70W
Mechanical
Color / Material		Ivory / Aluminum
Product dimensions / weight		98.9x52.0x100.0mm(3.89x2.05x3.94"), 295g(0.65 lb)

Χαρακτηριστικά Κάμερας
IR Leds, τεμάχια	15m(49.21ft)
Τεχνικά Χαρακτηριστικά
Ανάλυση αισθητήρα	Max. 2Megapixel (1920 x 1080) resolution
Τύπος Αισθητήρα	1/2.8" 2MP CMOS
Ελαχιστη Φωτεινότητα	Color: 0.04Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Εστιακό βάθος	3.6mm fixed focal
WDR	150dB
Analytics	Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification (w/ external MIC)
ONVIF	ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform
Συμπίεση Βίντεο	H.265, H.264, MJPEG codec supported
Μνήμη	1024MB RAM, 256MB Flash
Πιστοποίηση	IP66, IK10, NEMA4X EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007
Χρώματισμός / Υλικό	Ivory / Aluminum

Κατασκευαστής: HANWHA WISENET
Κωδικός Προϊόντος: XNV-6022R
Διαθεσιμότητα: Διαθέσιμο

Ποσότητα

Επιθυμητό Σύγκριση

Ετικέτες: XNV-6022R Mobile IR Flat Camera
