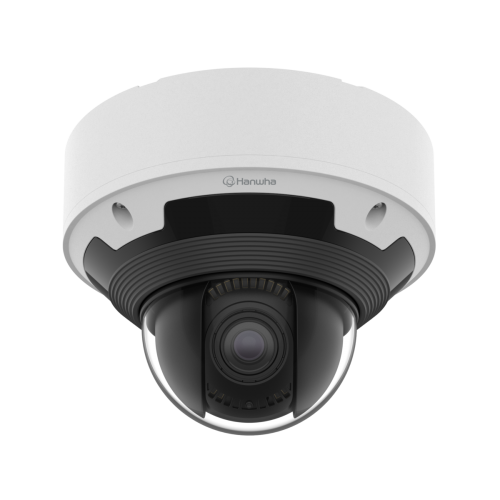

XNV-8083RZ
|
Video |
|||||||||||||||||
|
Imaging Device |
1/1.8" progressive CMOS |
||||||||||||||||
|
Resolution |
3328x1872, 3072x1728, 2592x1944, 2688x1520,
1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600,
800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
||||||||||||||||
|
Max. Framerate |
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max.
15fps/12fps(60Hz/50Hz) |
||||||||||||||||
|
Min. Illumination |
Color: 0.03Lux(F1.3,
1/30sec, 30IRE) BW: 0.003Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on) |
||||||||||||||||
|
Lens |
|||||||||||||||||
|
Focal Length (Zoom Ratio) |
4.4~9.3mm(2.1x) motorized varifocal |
||||||||||||||||
|
Max. Aperture Ratio |
F1.3(Wide) ~ F2.15(Tele) |
||||||||||||||||
|
Angular Field of View |
H: 113°(Wide)~47°(Tele) V:
58°(Wide)~26°(Tele) D: 138°(Wide)~54°(Tele) |
||||||||||||||||
|
Min. Object Distance |
0.5m(1.64ft) |
||||||||||||||||
|
Focus Control |
Simple focus, Manual |
||||||||||||||||
|
Lens Type |
P-iris(IR corrected) |
||||||||||||||||
|
Pan / Tilt / Rotate |
|||||||||||||||||
|
Pan / Tilt / Rotate Range |
Remote adjustment(Max. 200cycles) 0°~350° / 0°~85° /
0°~340° |
||||||||||||||||
|
Operational |
|||||||||||||||||
|
Camera Title |
Displayed up to 85 characters |
||||||||||||||||
|
Day & Night |
Auto(ICR) |
||||||||||||||||
|
Backlight Compensation |
BLC, HLC, WDR, SSDR |
||||||||||||||||
|
Wide Dynamic Range |
extremeWDR (120dB) |
||||||||||||||||
|
Digital Noise Reduction |
WiseNRⅡ(Based on AI engine), SSNRⅤ |
||||||||||||||||
|
Digital Image Stabilization |
Support |
||||||||||||||||
|
Defog |
Support |
||||||||||||||||
|
Motion Detection |
8ea, 8point Polygonal zones |
||||||||||||||||
|
Privacy Masking |
32ea, 4point Quadrangle zones - Color : Gray, Green,
Red, Blue, Black, White - Mosaic |
||||||||||||||||
|
Gain Control |
Off / Max Gain / Manual |
||||||||||||||||
|
White Balance |
ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
||||||||||||||||
|
LDC |
Support (Fill/stretch mode) |
||||||||||||||||
|
Electronic Shutter Speed |
Minimum / Maximum / Prefer / Anti flicker
(2~1/12,000sec) Auto Prefer shutter control(Based on AI engine) |
||||||||||||||||
|
Video Rotation |
Flip, Mirror, Hallway view(90°/270°) |
||||||||||||||||
|
Analytics |
Classified object type : Person/Face/Vehicle/License
plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support
DetectionShot Analytics events based on AI engine - Object detection, Virtual
line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics events - Defocus detection, Motion detection, Tampering, Fog
detection, Virtual area(Appear/Disappear) * Audio detection, Sound
classification(with NW I/O box SPM-4210) |
||||||||||||||||
|
Alarm Triggers |
Analytics, Network disconnect, App event, Time
schedule * Alarm input(with NW I/O Box SPM-4210) |
||||||||||||||||
|
Alarm Events |
When alarm trigger occurred - File upload(image) :
e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS
recording at event triggers - Alarm output(with NW I/O box SPM-4210) -
Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) |
||||||||||||||||
|
IR Viewable Length |
15m(49.21ft) 30m(98.43ft) based on scene |
||||||||||||||||
|
Network |
|||||||||||||||||
|
Ethernet |
Metal shielded RJ-45(10/100/1000BASE-T) |
||||||||||||||||
|
Video Compression |
H.265/H.264: Main/High, MJPEG |
||||||||||||||||
|
Smart Codec |
Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
||||||||||||||||
|
Bitrate Control |
H.264/H.265: CBR or VBR MJPEG: VBR |
||||||||||||||||
|
Streaming |
Unicast(20 users) / Multicast Multiple streaming(Up
to 10 profiles, 3 virtual channel support) |
||||||||||||||||
|
Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP),
RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP,
SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP,
UDP Unicast) |
||||||||||||||||
|
Security |
TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login
Authentication Digest Login Authentication IP Address Filtering User access
log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device
Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default
certificate Secure OS/Boot/Storage, Verify firmware forgery |
||||||||||||||||
|
Application Programming Interface |
ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open
platform |
||||||||||||||||
|
General |
|||||||||||||||||
|
Webpage Language |
English, Korean, Chinese, French, Italian, Spanish,
German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek,
Hungarian |
||||||||||||||||
|
Edge Storage |
Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2) |
||||||||||||||||
|
Memory |
4GB RAM, 512MB Flash |
||||||||||||||||
|
Environmental & Electrical |
|||||||||||||||||
|
Operating Temperature / Humidity |
-50°C~+55°C(-58°F ~ +131°F) * Start up should be
done at above -30°C 0~95%RH(non-condensing) Humidity control /w AIR vent |
||||||||||||||||
|
Storage Temperature / Humidity |
-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
||||||||||||||||
|
Certification |
IP66/IP67/IP6K9K, NEMA4X, IK10+ |
||||||||||||||||
|
Input Voltage |
PoE+(IEEE802.3at type 2, Class4) |
||||||||||||||||
|
Power Consumption |
PoE+:
| ||||||||||||||||
